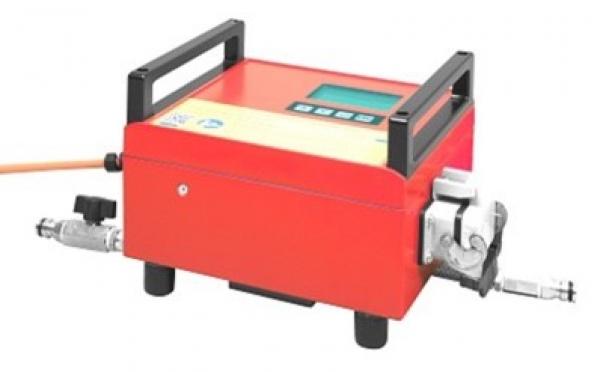

- Power: 4/6,5 kW 230/400V3
- Bluetooth interface
- display with membrane keyboard
- suitable for HD16.6, HS40, HS50, TS40, TK40, TR40
Handling and operation
Via the converter FU6 D I am connected to the 230V/400V mains. By turning the handle the cutting depth can be adjusted and fixed. Thereby the diamond - saw blade is dipped to the desired cutting depth and the desired position is fixed via the holding handle. If my handle is released and no plunge - feed force is applied, the saw blade returns completely to the blade guard via a gas pressure spring. This design increases my operating safety.
Due to the arrangement of the parallel rocker arms, the ergonomic position of my handle arrangement changes only insignificantly during plunging. of my handle arrangement changes only insignificantly. If I am to dry-cut, my motor can still be water-cooled by diverting the water flow via a bypass valve.
